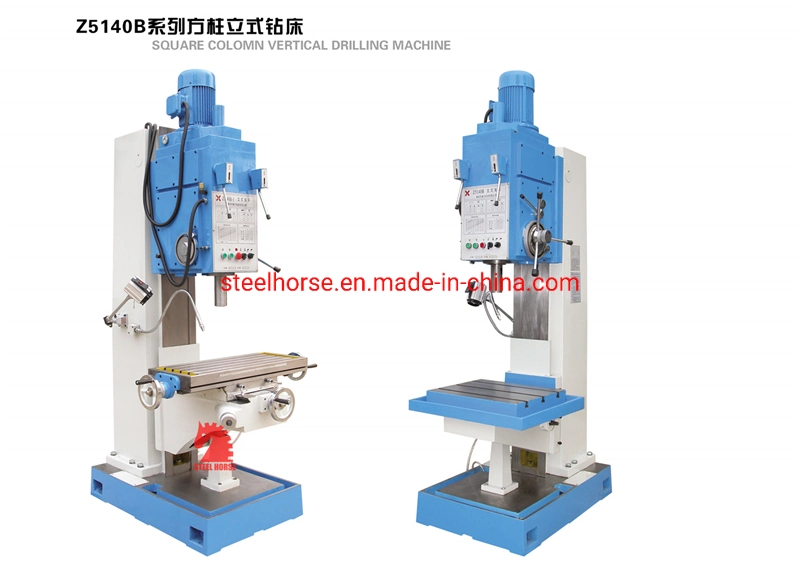

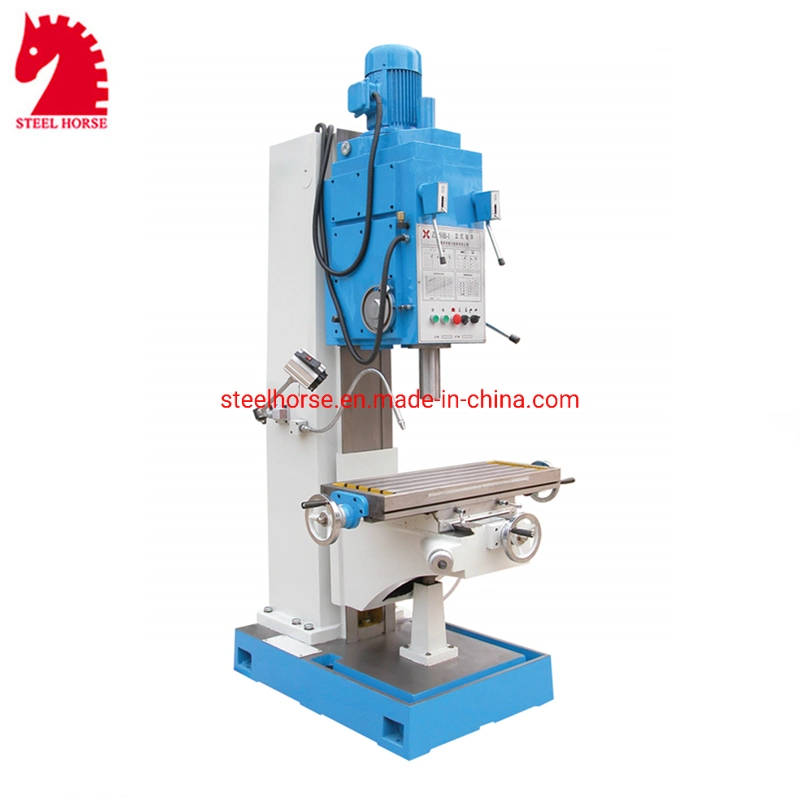

Z5163 drill tool Column driller metal Hole stand Vertical Drilling Machine
1.Column type of vertical drilling machine;2. 3-phase with two- voltage for 220V~575V collocation;
3. All main parts are made with quality cast iron;
4. Single-speed motor, 9 or 12 step gear speed;
5. Strength spindle, large diameter column;
6. Worktable could be rotated and could be inclined ±45 degree;
7. With unloading tool, coolant system and fender device;
8. Thin oil lubrication.
| Z51100 | Z5180 | Z5163 | Z5150 | Z5140 | |
| Max. drilling diameter | 100mm | 80mm | 63mm | 50mm | 40mm |
| The maximum feed force | 45000N | 30000N | 30000N | 16000N | 16000N |
| Spindle taper | Morse NO.6 | Morse NO.6 | Morse NO.5 | Morse NO.5 | Morse NO.4 |
| Spindle center to surface distance rail | 480mm | 375mm | 375mm | 335mm | 335mm |
| Spindle travel | 310mm | 250mm | 250mm | 250mm | 250mm |
| Headstock travel | 300mm | 250mm | 250mm | 200mm | 200mm |
| Spindle speed | 26-320 r/min 6 steps | 40-570 r/min 9 steps | 40-570 r/min 9 steps | 40-570 r/min 9 steps | 31.5-1400 r/min 12 steps |
| Feed rate | 0.096-0.717r/min 6 steps | 0.1-0.78r/min 6 steps | 0.1-0.78r/min 6 steps | 0.056-1.8r/min 9 steps | 0.056-1.8r/min 9 steps |
| Table travel | 300mm | 300mm | 300mm | 300mm | 300mm |
| Table size | 760×650mm | 650×550mm | 650×550mm | 480×560mm | 480×560mm |
| Spindle nose to table the maximum distance | 850mm | 800mm | 800mm | 750mm | 750mm |
| Spindel power | 7.5kw | 5.5kw | 5.5kw | 4kw | 3kw |
| cool | 25L/min | 25L/min | 25L/min | 25L/min | 25L/min |
| Out size | 1465×970×317mm | 1452×965×2787mm | 1452×965×2787mm | 1040×906×2535mm | 1040×906×2535mm |
| weight | 3500kg | 2500kg | 2500kg | 1250kg | 1250kg |
