Product Description
Features:
1) Material: High manganese steel: Mn13%, Mn18%, Mn24% High chromium iron: Cr20, Cr24 up Carbon Steel HT200 QT400-15.
2) Use: Machinery in metal recovery smash, mine, metallurgy, chemical industry, cement, petroleum etc.
3) Production quality testing: High frequency infrared carbon & sulfur analyzer, Metallographic microscope, Machinery performance testing equipment, Hardness testing equipment, Ultrasonic inspection equipment.

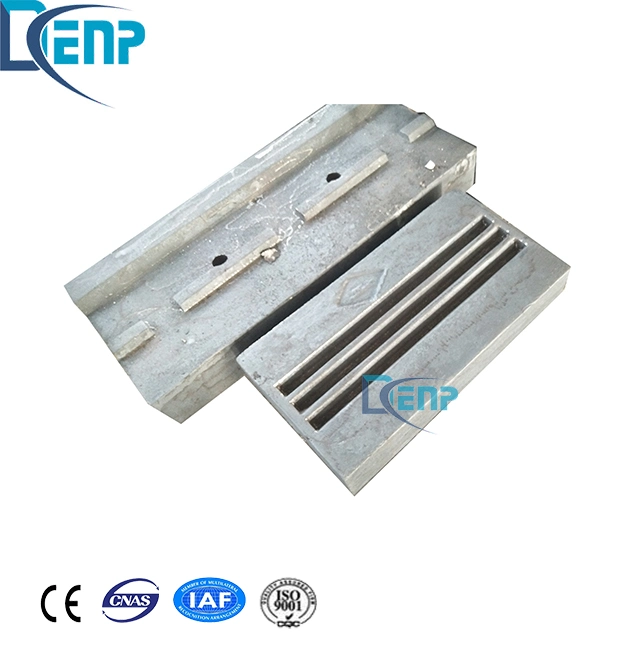

4) Easy installation: The anti-abrasion block is a semi-permanent part, which is easy for replacement.
Model | Feeding Hole Dimension(mm) | Maximum Feeding size (mm) | Rotor Dimension(mm*mm) | Handling Ability (t/h) | Power(kw) | Overall Dimension (mm*mm*mm) | Weight(t) |
| PF1007 | 400*730 | 250 | Φ1000*700 | 30~50 | 37-55 | 2440*1580*26720 | 9.8 |
| PF1010 | 400*1080 | 250 | Φ1035*1050 | 50~80 | 55/90 | 2280*1804*2389 | 12.8 |
| PF1210 | 400*1080 | 350 | Φ1250*1050 | 70~120 | 110 | 3165*2027*2729 | 14.6 |
| PF1214 | 400*1430 | 350 | Φ1250*1400 | 95~145 | 132/160 | 2571*2403*2705 | 17 |
| PF1315 | 860*1520 | 350 | Φ1320*1500 | 150~200 | 220 | 3154*2695*2613 | 21.5 |
| PF1320 | 860*2030 | 500 | Φ1320*1200 | 200~280 | 315 | 3320*3218*2613 | 25 |
| PF1416 | 1052*1652 | 500 | Φ1420*1600 | 280~350 | 355 | 3405*2813*2713 | 29 |
| PF1520 | 2040*1315 | 700 | Φ1512*2000 | 350~450 | 400/450 | 4138*3422*3649 | 44 |
| PF1620 | 2040*1315 | 700 | Φ1612*2000 | 400~600 | 500 | 4236*3572*3735 | 47 |
| PF1820 | 1620*2040 | 700 | Φ1800*2000 | 550~800 | 630/710 | 4471*3250*4008 | 66 |
| PF2024 | 1800*2430 | 1200 | Φ2000*2400 | 800~1100 | 1120 | 4800*4740*4180 | 115 |
| PF2325 | 2210*2540 | 1500 | Φ2300*2500 | 1000~1400 | 1250/1400 |
